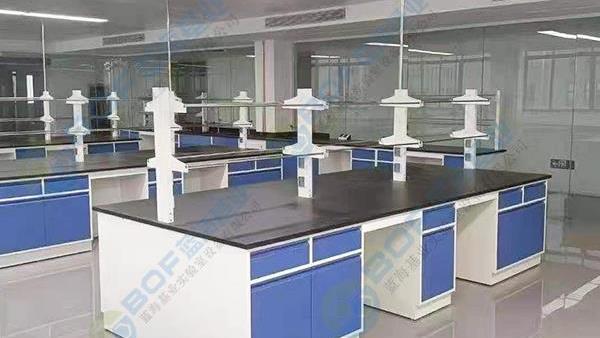

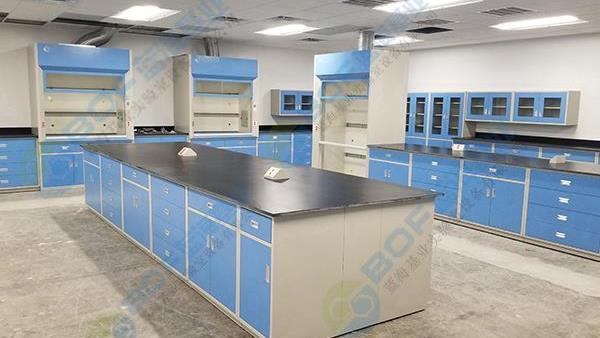

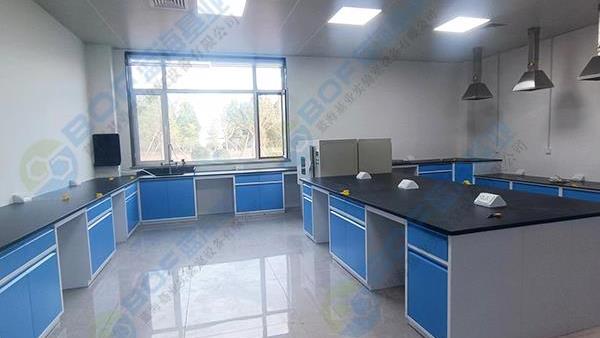

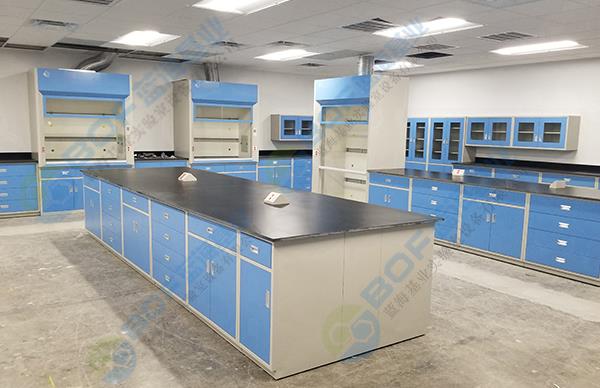

All steel central console

The all-steel central platform is integrally formed using galvanized steel plates. The overall material is made of steel, which has the characteristics of corrosion resistance, acid and alkali resistance, and good load-bearing performance. The all steel central experimental platform is a scientific research platform, such as the experimental operating platform placed in the middle of the laboratory by universities, vocational schools, subordinate units of the Chinese Academy of Sciences, chemical plants, biopharmaceuticals and other enterprises and institutions, and the all steel central experiment

The platform can accommodate large instruments, equipment, and testing experiments.

Detailed Product Introduction

Specification: L * 1500 * 800mm

1. Table top: Generally, 12.7mm solid core physical and chemical board is used for laboratory use, with double-layer thickening of the edges to 25.4, which is resistant to strong acid, alkali, corrosion, waterproof, and easy to clean. According to laboratory characteristics and customer needs, we can choose from solid core physical and chemical boards, epoxy resin boards, ceramic boards, marble boards, etc

Table top options:

A: Solid core physical and chemical board thickness: 12.7mm, after edge sealing, 25.4mm, with texture, temperature resistance ≤ 135 ℃, immersion resistance, acid and alkali corrosion resistance, easy wiping, easy cleaning, UV resistance, anti-static and other characteristics.

B: Epoxy resin board thickness: 16mm 19/25mm, customizable. The epoxy resin countertop is made by mixing epoxy resin and silica powder (quartz sand powder) with adhesive and colorant, and casting at a temperature of about 100 degrees Celsius. It has no texture, temperature resistance ≤ 600 ℃, immersion resistance, acid and alkali corrosion resistance, easy to wipe, repairable, and compression resistance without deformation.

C: The ceramic plate is made of natural silicate material with a corrosion-resistant special glaze treatment on the surface. It has been calcined at 1250 ℃ for a long time and is resistant to temperature ≤ 1200 ℃, immersion, acid and alkali corrosion, easy to wipe, and compression without deformation.

D. Marble: Marble is a recrystallized limestone with a delicate texture. It has been polished and formed, with smooth edges and long service life without deformation. It has high hardness, impact resistance, strong wear resistance, corrosion resistance, scratch resistance, easy cleaning, wear resistance, high temperature resistance, and stable physical properties.

2. Cabinet: All steel structure, the cabinet is made of 1.0mm galvanized steel plate and formed through a mold. It undergoes processes such as cutting, slotting, and bending, and is then assembled using fixtures. The entire process is completed using precision equipment, and all exposed welds are carefully polished to be smooth and not harmful to hands.

3. Door panels and drawer panels: All adopt an inner and outer double-layer structure. The drawers are formed by bending galvanized steel plates into one, with strong support capacity. After the sealing plate is bent, it is connected to the outer drawer panel through drilling screws, with a seamless appearance and an overall beautiful and generous appearance.

4. Handle: Aluminum alloy concealed handle/stainless steel open handle/straight bend handle.

5. Hinge: 90 degree damping hinge, corrosion-resistant, noiseless, non rebound, good strength, non breaking, long service life, and other characteristics.

6. Slide rail: Equipped with high-quality three section silencing guide rails, ensuring that the drawer is fully opened, load-bearing, and not deformed. The entire drawer not only has no noise during daily opening and closing, but also makes it sturdy and not easily deformed.

Configurable:

7. Movable Backboard: Adopting a movable and pull-up free disassembly structure, it is easy to repair water, electricity, gas and other pipelines during use,

8. Active layer board: Add reinforcing bars inside to enhance its load-bearing capacity and prevent deformation of the layer board under stress. Equipped with steel layer board support pins, it can be freely disassembled and the height can be adjusted as needed.

9 adjustable foundation: professional mold combination structure; The adjustable screw is galvanized, the nylon cover is a one-time molding of Injection mold construction, and the rubber mold pad is embedded, which can bear weight, prevent moisture, prevent slip, shock absorption, bacteriostasis, corrosion resistance, and adjust the level of the platform; Beautiful and generous appearance, humanized design.

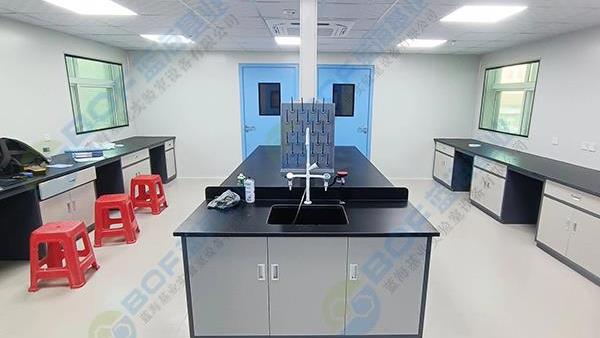

10. PP sink: Made of PP material, resistant to acid and alkali corrosion, with elasticity, it can prevent the breakage of glassware. High density PP (polypropylene) is non-toxic, odorless, and has a low density. Its strength, stiffness, hardness, and heat resistance are better than those of low-pressure polyethylene, and can be used at around 100 ℃. It has good dielectric properties and high-frequency insulation, and is not affected by humidity. It has high heat resistance and can be used continuously at temperatures ranging from 110 to 120 ℃. Good chemical properties, almost no water absorption, and does not react with the vast majority of chemicals.

11. Faucet: The faucet is a laboratory specific all copper single or triple faucet with a ceramic valve core.

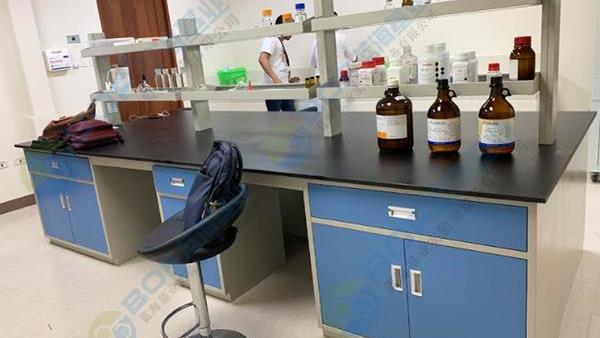

12. Reagent rack: steel glass structure; The laminates are made of 8mm thick high-quality tempered glass with adjustable height; The pillar is resistant to acid and alkali corrosion through bending, punching, and epoxy resin spraying.

13. Drip holder: non-toxic, odorless, with low density, and superior strength, stiffness, hardness, and heat resistance to low-pressure polyethylene. It can be used at around 100 ℃. It has good dielectric properties and high-frequency insulation, and is not affected by humidity. It has high heat resistance and can be used continuously at temperatures ranging from 110 to 120 ℃. Good chemical properties, almost no water absorption, and does not react with the vast majority of chemicals.
