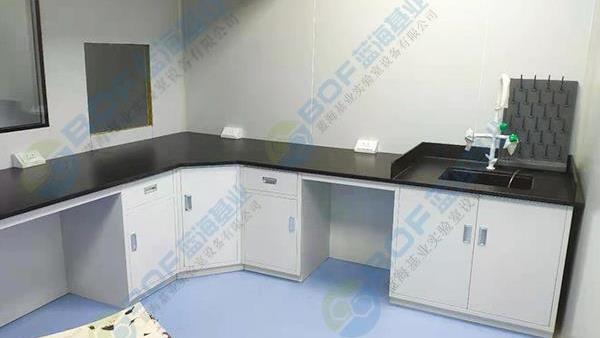

All steel corner table

All steel cabinets of the full steel corner table are made of 1.0mm thick galvanized steel plate as the substrate mechanism, and the surface is sprayed with epoxy resin electrostatic powder.

Detailed Product Introduction

Specification: 1000 * 1000 * 800mm

1. Table top: Generally, 12.7mm solid core physical and chemical board is used for laboratory use, with double-layer thickening of the edges to 25.4, which is resistant to strong acid, alkali, corrosion, waterproof, and easy to clean. According to laboratory characteristics and customer needs, we can choose from solid core physical and chemical boards, epoxy resin boards, ceramic boards, marble boards, etc

Table top options:

A: Solid core physical and chemical board thickness: 12.7mm, after edge sealing, 25.4mm, with texture, temperature resistance ≤ 135 ℃, immersion resistance, acid and alkali corrosion resistance, easy wiping, easy cleaning, UV resistance, anti-static and other characteristics.

B: Epoxy resin board thickness: 16mm 19/25mm, customizable. The epoxy resin countertop is made by mixing epoxy resin and silica powder (quartz sand powder) with adhesive and colorant, and casting at a temperature of about 100 degrees Celsius. It has no texture, temperature resistance ≤ 600 ℃, immersion resistance, acid and alkali corrosion resistance, easy to wipe, repairable, and compression resistance without deformation.

C: The ceramic plate is made of natural silicate material with a corrosion-resistant special glaze treatment on the surface. It has been calcined at 1250 ℃ for a long time and is resistant to temperature ≤ 1200 ℃, immersion, acid and alkali corrosion, easy to wipe, and compression without deformation.

D. Marble: Marble is a recrystallized limestone with a delicate texture. It has been polished and formed, with smooth edges and long service life without deformation. It has high hardness, impact resistance, strong wear resistance, corrosion resistance, scratch resistance, easy cleaning, wear resistance, high temperature resistance, and stable physical properties.

2. Cabinet: All steel structure, the cabinet is made of 1.0mm galvanized steel plate and formed through a mold. It undergoes processes such as cutting, slotting, and bending, and is then assembled using fixtures. The entire process is completed using precision equipment, and all exposed welds are carefully polished to be smooth and not harmful to hands.

3. Door panels and drawer panels: All adopt an inner and outer double-layer structure. The drawers are formed by bending galvanized steel plates into one, with strong support capacity. After the sealing plate is bent, it is connected to the outer drawer panel through drilling screws, with a seamless appearance and an overall beautiful and generous appearance.

4. Handle: Aluminum alloy concealed handle/stainless steel open handle/straight bend handle.

5. Hinge: 90 degree damping hinge, corrosion-resistant, noiseless, non rebound, good strength, non breaking, long service life, and other characteristics.

Configurable:

6 adjustable footings: professional mold combination structure; The adjustable screw is galvanized, the nylon cover is a one-time molding of Injection mold construction, and the rubber mold pad is embedded, which can bear weight, prevent moisture, prevent slip, shock absorption, bacteriostasis, corrosion resistance, and adjust the level of the platform; Beautiful and generous appearance, humanized design.

7. PP sink: Made of PP material, resistant to acid and alkali corrosion, with elasticity, it can prevent the breakage of glassware. High density PP (polypropylene) is non-toxic, odorless, and has a low density. Its strength, stiffness, hardness, and heat resistance are better than those of low-pressure polyethylene, and can be used at around 100 ℃. It has good dielectric properties and high-frequency insulation, and is not affected by humidity. It has high heat resistance and can be used continuously at temperatures ranging from 110 to 120 ℃. Good chemical properties, almost no water absorption, and does not react with the vast majority of chemicals.

8. Faucet: The faucet is a laboratory specific copper single or triple faucet with a ceramic valve core.

9. Reagent rack: steel glass structure; The laminates are made of 8mm thick high-quality tempered glass with adjustable height; The pillar is resistant to acid and alkali corrosion through bending, punching, and epoxy resin spraying.

10. Drip holder: non-toxic, odorless, with low density, and superior strength, stiffness, hardness, and heat resistance to low-pressure polyethylene. It can be used at around 100 ℃. It has good dielectric properties and high-frequency insulation, and is not affected by humidity. It has high heat resistance and can be used continuously at temperatures ranging from 110 to 120 ℃. Good chemical properties, almost no water absorption, and does not react with the vast majority of chemicals.
