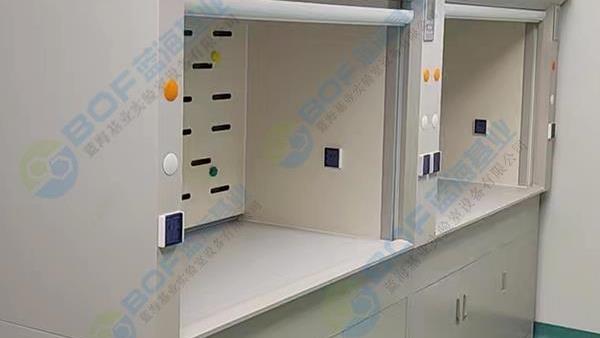

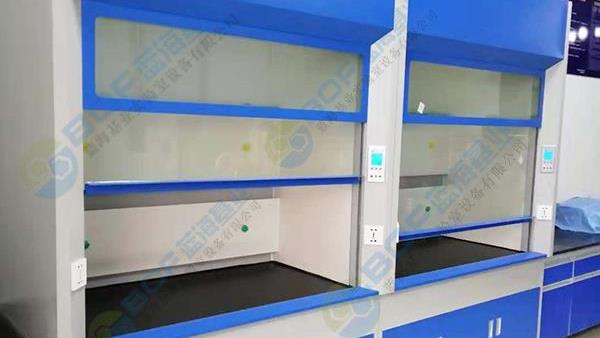

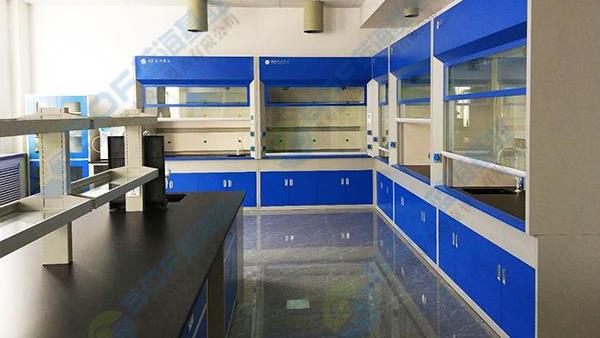

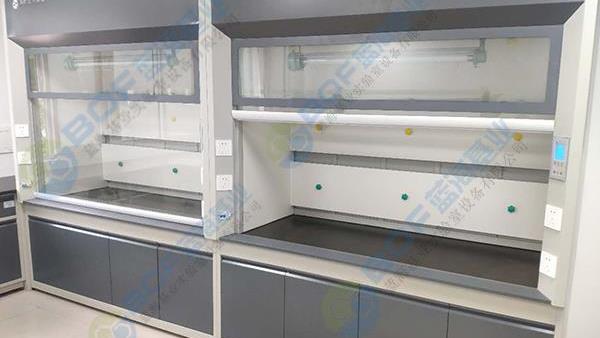

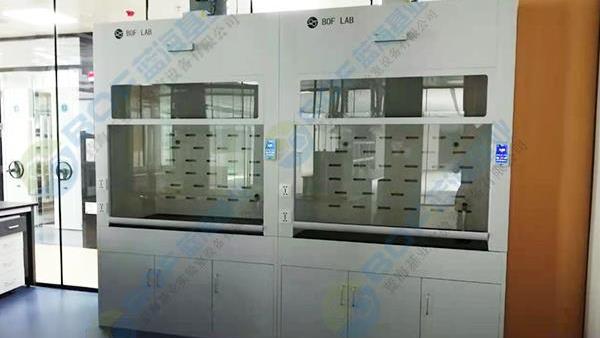

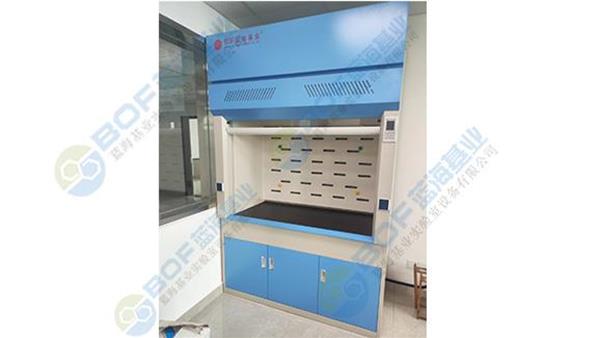

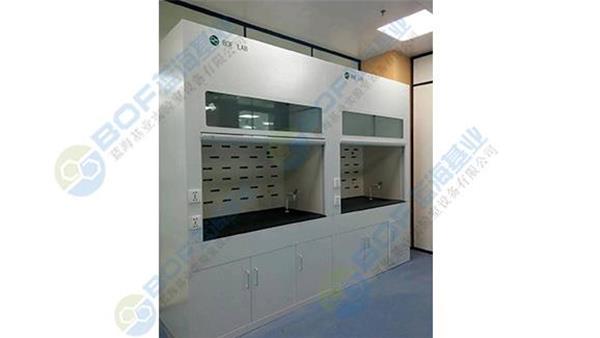

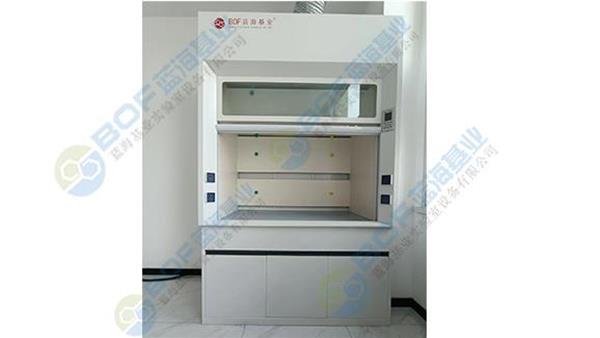

All steel Fume hood

All steel Fume hood is one of the most commonly used local exhaust equipment in the laboratory, with a wide range of types. Due to different structures and use conditions, its exhaust effect is also different. The good performance of all steel Fume hood mainly depends on the speed of air movement through all steel Fume hood. Scope of use: biopharmaceutical, bioanalysis, plant cultivation, environmental testing, and scientific research on electronic instruments and meters.

Product specifications:

Overall specification: (L1200/1500/1800 * W800 * H2350) mm

Upper cabinet size: (L1200/1500/1800 * W800 * H1500) mm

Bottom size: (L1200/1500/1800 * W750 * H825) mm

Material Description:

1. Table top: It adopts a 12.7mm thick psychological board specially designed for the laboratory, with the edge thickened to 25.4mm by double-layer 12.7mm physical and chemical boards. The structure is sturdy and dense, able to withstand strong impacts, strong acids and alkalis, and has good load-bearing performance. It is also equipped with door barriers around to prevent liquid leakage.

2. Cabinet body: Made of 1.2mm high-quality galvanized steel plate, with the surface treated with acid pickling, phosphating, epoxy resin powder electrostatic spraying and anti-corrosion treatment.

3. Inner lining: 5mm thick anti beta plate is used, and its structure has a pressure relief effect on explosions.

4. Hinge: 90 degree damping hinge, corrosion-resistant, noiseless, non rebound, good strength, non breaking, long service life, and other characteristics.

5. Visual window: Made of 5mm thick professional explosion-proof glass, with stepless balanced lifting and can stay in any position.

6. Socket: Adopting multifunctional socket, suitable for various instrument plugs.

7. Lighting: A set of 30W fluorescent lamps shall be used, and the lighting shall not be less than 300LCX.

8. Adjustment foot: Made of high-quality stainless steel and high-strength nylon combination foot, with anti slip and shock absorption functions, adjustable height of 30-40mm, anti acid and alkali corrosion, strong load-bearing capacity, etc

9. Flow deflector: 5mm thick anti beta plate is used, with a three-stage structure to effectively discharge gases of different specific gravity. 10. PP small water cup: Made of Borang water cup, resistant to acid and alkali, and corrosion.

10. Single port faucet: The faucet is a laboratory specific copper single port faucet with a ceramic valve core.

11. Drainage system: Made of high-density PP material, the sink is corrosion-resistant, acid alkali resistant, and organic matter resistant, with filtering and odor blocking functions.
