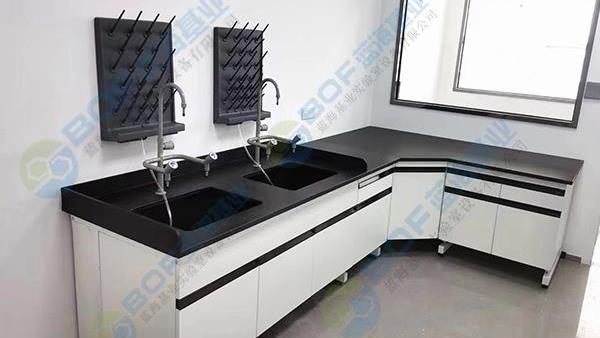

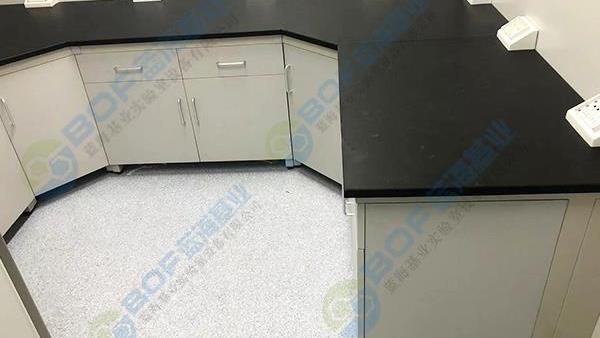

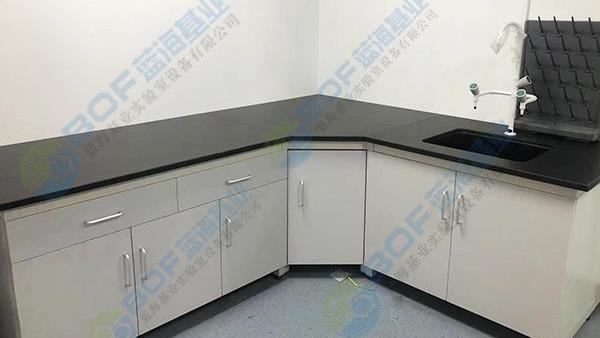

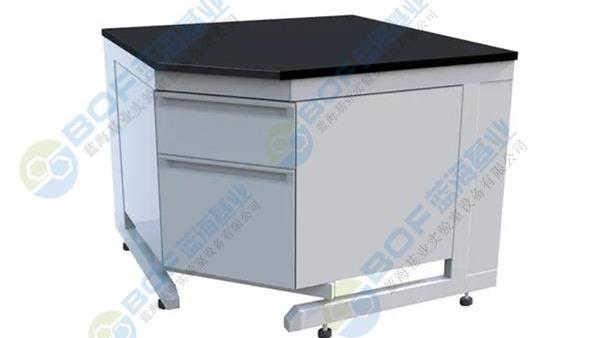

Steel and wood corner table

The steel and wood central platform is mainly composed of a steel frame and suspended with a wooden cabinet body. It has good load-bearing capacity, strong overall adjustability, high independence, diverse styles, and can be combined at will. It has a strong sense of modernity and is beautiful and elegant, making it the first choice for various laboratories. Suitable for heavier items such as gas detectors, supported by a steel frame, with excellent compressive strength.

Detailed Product Introduction

Specification: 1000 * 1000 * 800mm

1. Table top: Generally, 12.7mm solid core physical and chemical board is used for laboratory use, with double-layer thickening of the edges to 25.4, which is resistant to strong acid, alkali, corrosion, waterproof, and easy to clean. According to laboratory characteristics and customer needs, we can choose from solid core physical and chemical boards, epoxy resin boards, ceramic boards, marble boards, etc

Table top options:

A: Solid core physical and chemical board thickness: 12.7mm, after edge sealing, 25.4mm, with texture, temperature resistance ≤ 135 ℃, immersion resistance, acid and alkali corrosion resistance, easy wiping, easy cleaning, UV resistance, anti-static and other characteristics.

B: Epoxy resin board thickness: 16mm 19/25mm, customizable. The epoxy resin countertop is made by mixing epoxy resin and silica powder (quartz sand powder) with adhesive and colorant, and casting at a temperature of about 100 degrees Celsius. It has no texture, temperature resistance ≤ 600 ℃, immersion resistance, acid and alkali corrosion resistance, easy to wipe, repairable, and compression resistance without deformation.

C: The ceramic plate is made of natural silicate material with a corrosion-resistant special glaze treatment on the surface. It has been calcined at 1250 ℃ for a long time and is resistant to temperature ≤ 1200 ℃, immersion, acid and alkali corrosion, easy to wipe, and compression without deformation.

D. Marble: Marble is a recrystallized limestone with a delicate texture. It has been polished and formed, with smooth edges and long service life without deformation. It has high hardness, impact resistance, strong wear resistance, corrosion resistance, scratch resistance, easy cleaning, wear resistance, high temperature resistance, and stable physical properties.

2. C-shaped steel frame: The frame is formed by welding 40mm * 60mm/30 * 50, and the surface is treated with epoxy resin electrostatic spraying. This structure has strong load-bearing capacity, reasonable structure, high stability, and can withstand strong acids and alkalis on the surface. It has anti-corrosion, waterproof, fireproof, and mothproof properties.

3. Cabinet body: Made of high-pressure, moisture-proof, and impact-resistant 16mm thick high-quality melamine board. Drawer panels and door panels are made of 18mm thick high-quality melamine MDF board, which is carved and formed using fully automatic CNC numerical control and engraving machines. The processing surface is smooth, beautiful, and free of burrs. All sections are made of imported automatic edge banding machines, and 1mm thick Youju PVC waterproof edge banding strip is used for hot melt processing, which is integrated with the board, with strong adhesion, good sealing, and waterproof, Beautiful and durable in appearance, all panels are connected in a detachable three in one manner, with a stable structure and good load-bearing performance. It is easy to dismantle and is suitable for use in the special working environment of the laboratory.

4. Handle: Aluminum alloy open handle/stainless steel open handle/straight PP handle.

5. Hinge: 90 degree damping hinge, corrosion-resistant, noiseless, non rebound, good strength, non breaking, long service life, and other characteristics.

6. Adjustable foundation: professional mold combination structure; The adjustable screw is galvanized, the nylon cover is a one-time molding of Injection mold construction, and the rubber mold pad is embedded, which can bear weight, prevent moisture, prevent slip, shock absorption, bacteriostasis, corrosion resistance, and adjust the level of the platform; Beautiful and generous appearance, humanized design.

Configurable:

7. PP sink: Made of PP material, resistant to acid and alkali corrosion, with elasticity, it can prevent the breakage of glassware. High density PP (polypropylene) is non-toxic, odorless, and has a low density. Its strength, stiffness, hardness, and heat resistance are better than those of low-pressure polyethylene, and can be used at around 100 ℃. It has good dielectric properties and high-frequency insulation, and is not affected by humidity. It has high heat resistance and can be used continuously at temperatures ranging from 110 to 120 ℃. Good chemical properties, almost no water absorption, and does not react with the vast majority of chemicals.

8. Faucet: The faucet is a laboratory specific copper single or triple faucet with a ceramic valve core.

9. Reagent rack: steel glass structure; The laminates are made of 8mm thick high-quality tempered glass with adjustable height; The pillar is resistant to acid and alkali corrosion through bending, punching, and epoxy resin spraying.

10. Drip holder: non-toxic, odorless, with low density, and superior strength, stiffness, hardness, and heat resistance to low-pressure polyethylene. It can be used at around 100 ℃. It has good dielectric properties and high-frequency insulation, and is not affected by humidity. It has high heat resistance and can be used continuously at temperatures ranging from 110 to 120 ℃. Good chemical properties, almost no water absorption, and does not react with the vast majority of chemicals.
